AREAS AND VOLUMES

AREAS

CASE

1.Right angled triangle Area = ½ b x h

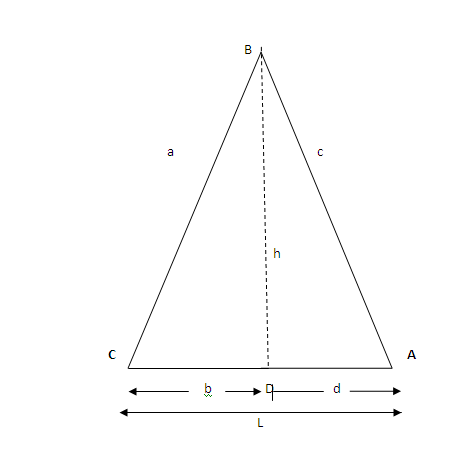

2. Triangle with altitude that lies within the triangle

Area 0f Δ ABC = ½ bh + ½ d h

= ½ h(b + d)

= ½ hL

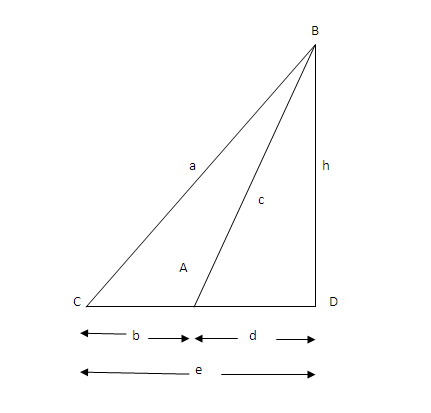

3. A triangle where the altitude of triangle lies outside of the triangle.

Area of ABC = area of triangle BCD – area of triangle ABD

= ½ h (b+d) – ½ h d

= ½ h e – ½ h d

= ½ h (e-d)

In all the triangle the formula is the same.

Thus if you were given a triangle with a base b and its corresponding height (altitude) h, its area is equal to ½ b h

CASE II

We can also use the knowledge of trigonometrical ratios.

Area of triangle ABC = ½ b h

= ½ b a sin c

Sin A = h/c

h= c sin A

the area of triangle ABC = ½ b c sin A

Example

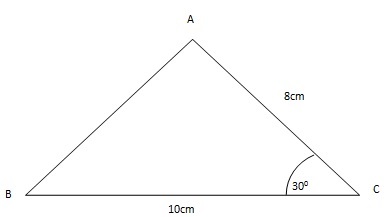

1. The length of two sides of a triangle are 8cm and 10 cm. find he area of the triangle, if the included angle is 30 ⁰.

Solution;

Area = ½ x 10 x 8 x sin 30⁰

= 40 x ½Cm²

=20cm²

2. The area of triangle ABC with sides a,b,c.

Area of triangle ABC

= ½ c b sin A

= ½ a c sin B

= ½ a b sin C

Example

The base of triangle PQR is 17 cm long. If corresponding height is 20cm, find the area of the triangle.

Solution;

Area of triangle PQR = ½ b h

= ½ x 17 x 20

= 170 cm²

Qn. 9

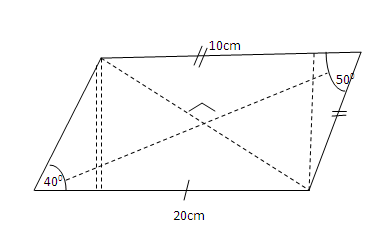

what is the area of the paper required to make the kite shown in the figure

Solution

(i) = ½ x 20 x 20 x sin 40º

= 200 x 0.6428

=128.56cm²

(ii)= ½ x 10 x 10 x sin 50⁰

= 50 x 0.7660

= 38.3 cm²

AREA OF TRAPEZIUM

Area of trapezium ABCD = area of triangle ABC + area required of triangle ADC

= L ₁h + L₂h

= h(_L1+ L₂)

Examples.

1. Calculate the height of trapezium with area 84 square units and bases 16 units and 8 units as shown ;

Area = ½ h ( b₁+ b₂)
84 = ½ h ( 16+ 8)
84 = 12 h
h = 7 units.

AREA OF PARALLELOGRAM

Area of parallelogram ABCD = area of ΔABD + ΔBCD
= ½ A B h + ½ C D h
= ½ h

= ½ h

= h x

Area of parallelogram = bh

AREA OF RHOMBUS

A rhombus is also a parallelogram.
Area = bh

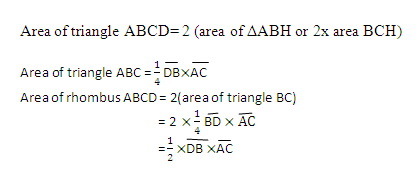

We can also find the area of the rhombus by considering the diagonals of a rhombus.

AC and DB are the diagonals.
Area of triangle ABC = area of triangle ADC
Area of rhombus ABCD= 2 (area of triangle ABC)
OR = 2 ( area of triangle ADC)

EXERCISE

1. 1. Calculate the area of a rhombus whose diagonals are 12dm and 10 dm.

2. 2. Calculate the area of the trapezium ABCD shown in the figure below

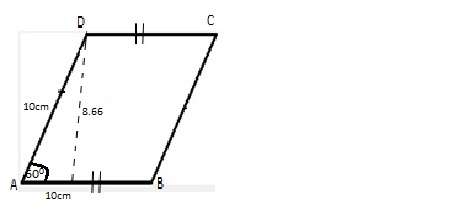

3. ABCD is a parallelogram with A= 10cm, BAD = 60⁰. Calculate the area of the parallelogram.

4. 4. Find the area of trapezium ABCD shown in the figure below;

Sin 36⁰ = h/ s

Solution4:

h = 0.5878x 5 cm

h= 2.939 cm

area = ½ x 2.939 (7+5)

= ½ x 2.939(12)

= 17.634cm²

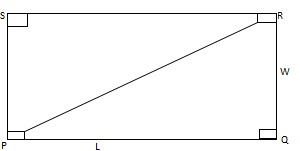

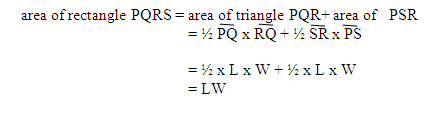

AREA OF A RECTANGLE

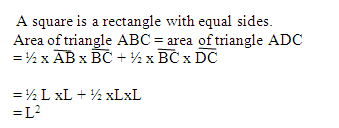

AREA OF SQUARE

A square is a rectangle with equal sides.
Area of triangle ABC = area of triangle ADC

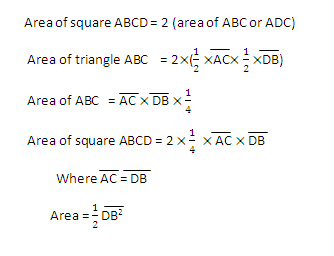

Also we can find the area of a square by considering the diagonals.

ΔABC = ΔADC
Area of triangle ABC = Area of triangle ADC

Example

1. Find the area of square in which diagonals have length of 12.5cm²

Solution

Area = ½ (length of diagonals)²

= ½ (12.5) ²

= 78.125cm ²

TOTAL SURFACE AREA OF A RIGHT CIRCULAR CONE
Right circular cone Is the one whose vertex is vertically above the center of the base of the cone.

Total surface area of a cone = area of curved surface + base area.

BUT;
area of curved surface ( lateral surface ) = area of small triangles.
If we consider our cone , AB, BC , CD and DC are approximated line segments, hence we have small triangles VAB,VBC , VCD and VDE.
Hence area of curved surface
= ½ AB x VA + ½ BC x VC + ½ CD x VC + ½ DEx VD
But VA= VB = VC = VD = VE
Area of curved surface = ½ AxBxL+ ½ BxCxL+ ½ xCx DxL+ ½ DxExL
= ½ L (AB+BC+CD+DE)
= ½ L (2πR)
= πRL
Total surface area = πR²+ πRL
= πR(R+L)

TOTAL SURFACE AREA OF A RIGHT CYLINDER

Total surface area of a right cylinder

= area of curved surface+ bases area.

= 2πRh + πR²

TOTAL SURFACE AREA OF A RIGHT PYRAMID

A right pyramid is the one which the slant edges joining the vertex to the corner of the base are equal.

Total surface area of a right pyramid

=area of triangle VAB+ VBC+VDC+VDA + area of the base.

= lateral surface + area of the base.

BUT

As VAB, VDC, VBC and VDA are isosceles triangles. Then VA,VB,VC and VD are slant height.

Example

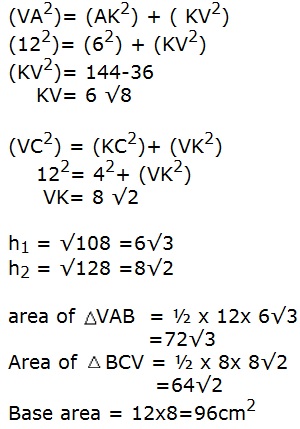

Consider the data below of a right pyramid. Find the total surface area of the pyramid.

Total surface area of a pyramid

= area of laterals + base area

=area of ΔVAB+ ΔVBC+ ΔVDC+ ΔVDA+ base area

EXERCISE

1. The radius of a base of right circular cylinder is 7dm and height is 10 dm. find;

(a). The total surface area.

Solution:

The total surface area = 2πR (h+r)
= 2 x 3.14 x 7 dm (10+7)
= 74.732 dm²
2. Calculate the lateral surface area of the right cone shown below.

= πr(r+L)
= 3.14×3.5x(3.5+1.6)
= 3.14×3.5×19.5
= 214.305cm²

THE TOTAL SURFACE AREA OF A RIGHT PRISM

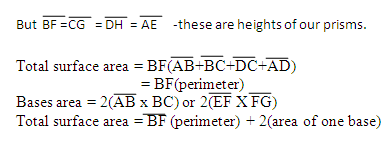

A right prism is a prism in which each of the vertical edges is perpendicular to the plane of the base. an example of right prism is shown in the figure below where EABF, FBSG, HDCG and EADH are faces made up the lateral surface. and ABCD and EFGH are bases.

= Area of lateral surface + base area

Example

Find the total surface area of a rectangular prism 12cm long,8 cm wide, and 5 cm high.

soln
Surface Area = BF(ABxBC)2
=5( 12 x8) 2
= 5cm x 192cm
=960 cm²

Base area = 12×8 x2
= 192 cm² . : Total surface area = 240 cm² +192 cm² = 432 cm²

Exercise
1. The altitude of a rectangular prism is 4cm and the width and length of its base are 12cm and 3 cm respectively. Calculate the total surface area of the prism.

2. One side of a cube is 4dm. calculate
a. The lateral surface area.
b. Total surface area.

3. Figure below shows a right triangular prism whose base is a right angles triangle. Calculate its total surface area.

4. The altitude of a square pyramid is 5units long and a side of the base is 5 units long. Find the area of a horizontal cross-section at distance 2 units above the base.

Solution

Answers

Solution1(a)

= 4(2+3) 2 +2(2×3)
= 4×10 + 12

= 40 + 12

= 53cm²

Solution2.
(a) Lateral area = 2 (4+4+4+4)

=2x 16

=32dm²

(b)Total surface area = 32 + 2(4+4)

= 48 dm²

Solution3.

=(AB²) + (BC²) = ( AC²)

=6² + 8² = AC²

AC=10

= 8x10cm²= 80 cm²

Area of triangle = ½ b h

= ½ x 6 x 8 x 2

= 48cm²

Area of rectangle b = 10cmx10cm

=100cm²

Total surface area = 100cm² + 48 cm²+ 80cm²

=228cm²

Solution4.
a²+b²=c²

2.5²+ b²= 5²

b²= 25-6.25

b= 4.33=h

a²+b²=c²

a²=251

A₁= (½ x 5×4.33) x2

=21.65cm²

A₂= x 2 x4.89×2

A₂= 9.798

Area = 9.798+21.65 cm²

=31.448cm²

AREA OF A CIRCLE

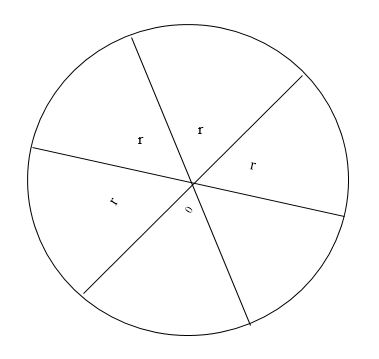

Consider a circle with several radii (r).

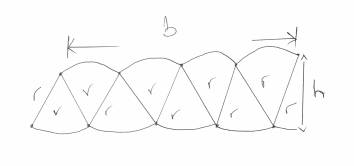

Re-arrange those pieces from a circle to form a parallelogram.

A= bh
= ½ c r
½ c r = 2πr
Area of a circle = πr²
Area of a sphere = 4 πr²

LENGTH AND PERIMETER OF A RECTANGULAR POLYGON INSCRIBED IN A CIRCLE.

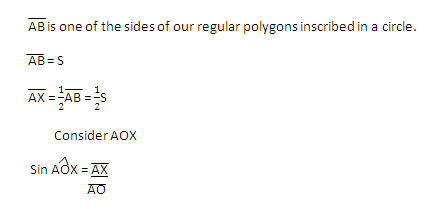

Consider triangle

AO is perpendicular to AB

Sin 180⁰/n =
s=
s=
p=ns
p= n(dsin180˚)

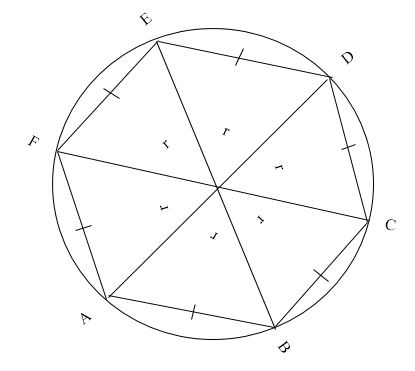

AREA OF A RECTANGULAR POLYGON INSCRIBED IN A CIRCLE

Area of a ΔAOB = sinY
AOB = r x r

Area of regular polygon inscribed in a circle.= n (r²)

Exercise
1. Find the length of one side of a regular nine –sided polygon inscribed in a circle of radius 10 cm².

2. Find the radius of a circle which inscribes an equilateral triangle with perimeter 24 cm.

3. Find the area of a 9-sided polygon inscribed in a circle with radius 5 cm.

4.Find the area between two concentric circles.

Answers

Solution 1.

Solution2.

Solution3.

Area = n r² sin

= ½ x9 x 25 x sin 40 ⁰
=11.25 x 0.6428
=72.315cm²

Solution4.
Area = πr²
= 3.14 x6x6
=113.04 cm²
Area = πr²
=3.14x 4×4
=50.24cm²
Area between circles = 113.04cm² – 50.24cm²
=62.80cm²

AREAS OF SIMILAR FIGURES

Similarity
Two polygons are similar when their corresponding angles are equal and corresponding sides are proportional.

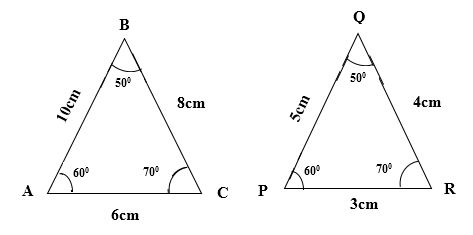

Similarity of polygons
If corresponding angles are equal, also if the corresponding side are proportional.
= = 50⁰
= = 60⁰
= = 70 ⁰
= 10cm = 2
5cm

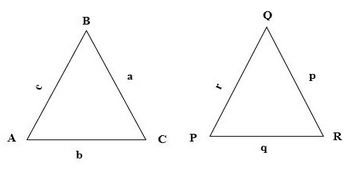

Area of triangle ABC = ½x a x c sin B
Area of triangle PQR = ½ r p sin Q

Area of triangle ABC = ½ ac sin B
Area of triangle PQR ½ r p sin Q
But Sin B = sin Q

Exercise.

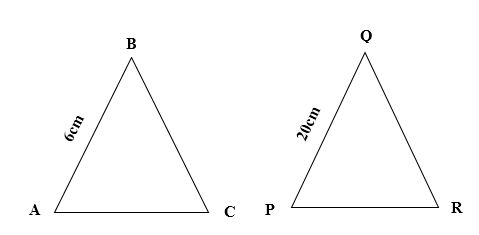

1. Two triangles are similar, A side is 6cm long. The corresponding side to the other is 20cm. if the area of the first is 90 cm² . what is the area of the second?

2. The ratios of the areas of two circles is 50: 72. If the radius of the smaller circle is 15 cm, find the radius of the larger circle

3. Two triangles are similar. A side of one is 2 units long . the corresponding side of the other is 5 units long. What is the ratio of their areas?

5. Two polygons are similar. A side of one is 8 cm long . the corresponding side of the other is18 cm . the area of the first is 16cm². Find the area of the second.
